Current Flow
Current flow is the movement of electric charge through a conductor. Understanding how current flows is one of the most important concepts in electronics because every circuit depends on the controlled movement of electrons.
What is Current Flow?
Current flow is the movement of electric charge from one point to another through a conducting path.
In metallic conductors such as copper, the moving charges are electrons.
When a voltage source is connected across a conductor, an electric field is created inside the wire, causing free electrons to begin moving.
Requirements for Current Flow
For electric current to flow, four conditions must be met.
- A voltage source.
- A complete (closed) circuit.
- A conducting material.
- A load that uses electrical energy.
If the circuit is opened by a switch or broken wire, current immediately stops flowing.
Electron Flow
Electrons are negatively charged particles.
Inside metallic conductors they move from the negative terminal towards the positive terminal of the voltage source.
This direction is called electron flow.
Conventional Current Flow
Long before electrons were discovered, scientists assumed that electric current flowed from the positive terminal towards the negative terminal.
This assumed direction became known as conventional current.
Although electrons actually move in the opposite direction, circuit diagrams and electronic textbooks still use conventional current.
| Electron Flow | Conventional Current |
|---|---|
| Negative → Positive | Positive → Negative |

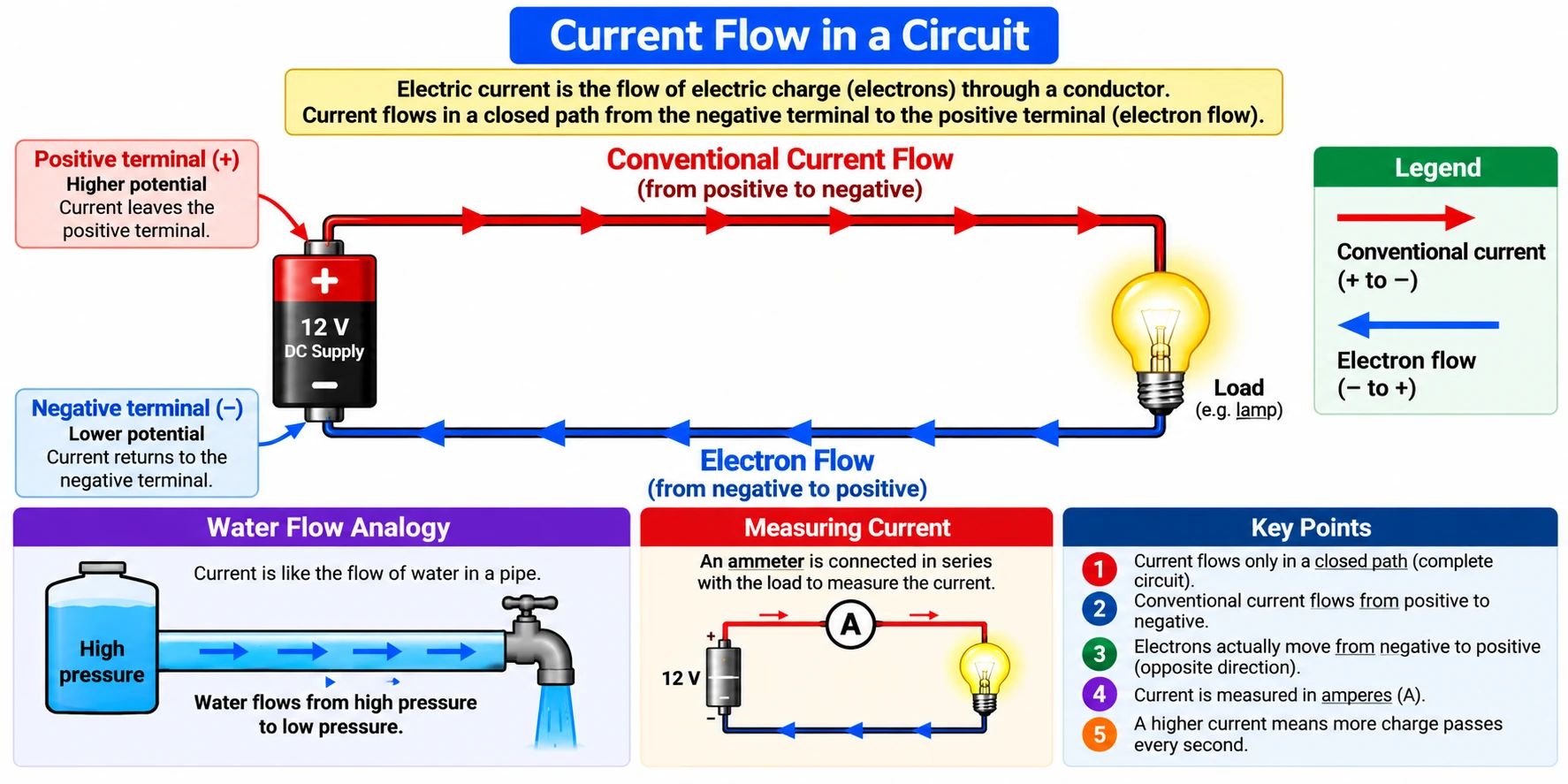

Current Flow in a Closed Circuit
When a battery is connected to a lamp with wires:
- The battery produces a voltage.
- An electric field appears inside the wires.
- Free electrons begin moving.
- Current flows through the lamp.
- The lamp converts electrical energy into light and heat.
- The electrons return to the battery.
The current continues flowing until the circuit is opened or the battery becomes discharged.
Current Flow in Different Materials
| Material | Current Carrier |
|---|---|
| Copper Wire | Free Electrons |
| Electrolytes | Positive and Negative Ions |
| Semiconductors | Electrons and Holes |
| Vacuum Tubes | Electrons |
Factors Affecting Current Flow
Several factors determine how much current flows through a circuit.
- Supply voltage.
- Resistance of the circuit.
- Type of conducting material.
- Temperature.
- Cross-sectional area of the conductor.
- Length of the conductor.
Increasing the voltage generally increases current, while increasing resistance reduces current.
Current Flow in Electronic Circuits
Electronic components are designed to control current flow.
| Component | Function |
|---|---|
| Resistor | Limits current |
| Switch | Starts or stops current |
| Diode | Allows current in one direction |
| Transistor | Controls current electronically |
| Fuse | Interrupts excessive current |
Current Flow and Energy Transfer
Current itself is not consumed.
Instead, electrical energy carried by the moving charges is converted into other forms of energy such as:
- Heat
- Light
- Mechanical motion
- Magnetic fields
- Sound
Key Points
- Current flow is the movement of electric charge.
- A complete circuit is required for current to flow.
- Electrons move from negative to positive.
- Conventional current is defined as flowing from positive to negative.
- Voltage causes current to flow.
- Resistance limits current.
- Electronic components control current in different ways.
