Measuring Electric Current
Measuring electric current is one of the most common tasks in electronics. Whether testing an LED, troubleshooting an amplifier or checking a battery charger, knowing how to measure current correctly is an essential skill.
What is Current Measurement?
Current measurement determines the amount of electric current flowing through a conductor or electronic component.
The SI unit of current is the ampere (A).
Smaller currents are usually measured in milliamperes (mA) or microamperes (µA).
Instruments Used to Measure Current
| Instrument | Application |
|---|---|
| Digital Multimeter (DMM) | General electronics testing |
| Analog Ammeter | Educational and industrial use |
| Clamp Meter | Measures high currents without disconnecting wires |
| Current Shunt | Measuring very large currents |

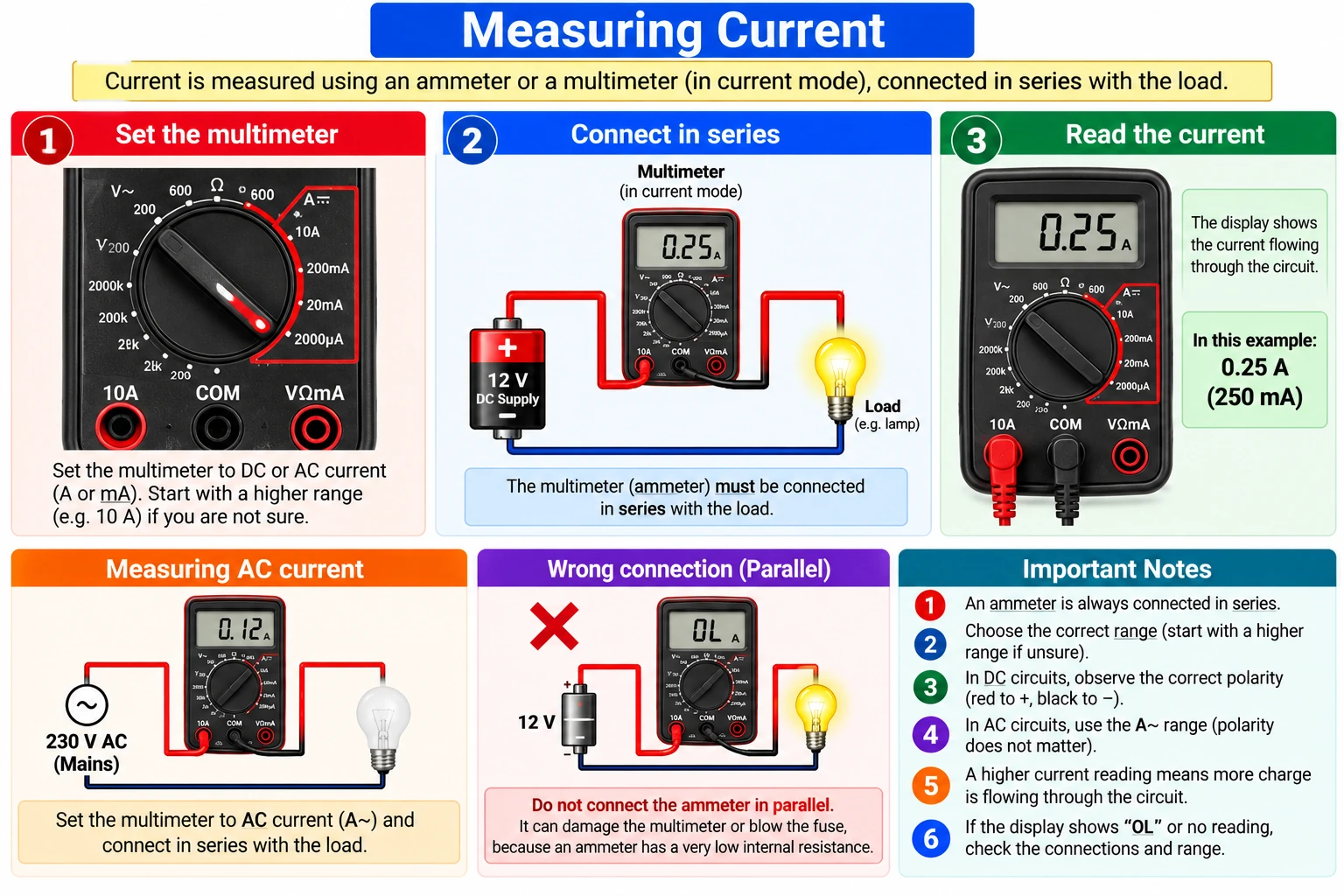

Connecting an Ammeter
An ammeter must always be connected in series with the circuit.
This ensures that all the current flowing through the circuit also flows through the meter.
Never connect an ammeter directly across a battery or power supply because it has very low internal resistance and may cause a short circuit.
Steps for Measuring Current
- Switch off the power.
- Select the correct current range on the meter.
- Move the test lead to the current input terminal if required.
- Open the circuit.
- Insert the meter in series.
- Restore power.
- Read the current value.
- Disconnect the meter after measurement.
Measuring Small Currents
Electronic circuits often use currents measured in milliamperes.
| Device | Typical Current |
|---|---|
| LED Indicator | 10–20 mA |
| Microcontroller | 20–150 mA |
| Small DC Fan | 100–300 mA |
| Bluetooth Module | 20–80 mA |
Measuring Large Currents
Large currents are commonly found in:
- Power amplifiers
- Battery chargers
- Electric motors
- Automotive systems
- Power supplies
A clamp meter or current shunt is often preferred because it is safer and does not require opening the circuit.
Current Shunts
A current shunt is a very low-value precision resistor connected in series with the load.
The small voltage developed across the shunt is measured and converted into current using Ohm's Law.
Current shunts are commonly used in:
- Digital ammeters
- Bench power supplies
- Battery management systems
- Industrial control equipment
Common Mistakes
- Connecting the ammeter across the power supply.
- Selecting the wrong measurement range.
- Using the voltage socket instead of the current socket.
- Forgetting to return the test lead after measuring current.
- Measuring currents larger than the meter's rating.
Safety Tips
- Start with the highest current range.
- Never exceed the meter's maximum rating.
- Inspect the meter leads before use.
- Use fused multimeters whenever possible.
- Disconnect power before changing meter connections.
Applications
Current measurements are used to:
- Troubleshoot electronic circuits.
- Measure battery charging current.
- Set amplifier bias current.
- Test LEDs and motors.
- Check power consumption.
- Verify power supply performance.
Key Points
- Current is measured in amperes (A).
- An ammeter is always connected in series.
- Never connect an ammeter directly across a voltage source.
- Clamp meters measure current without breaking the circuit.
- Current shunts are used for high-current measurements.
- Always select the correct measurement range before testing.
