What is Electric Current?
Electric current is the continuous movement of electric charge through a conductor. Every electrical and electronic device—from a tiny LED to a large industrial motor—depends on electric current to operate.
What is Electric Current?
Electric current is the rate at which electric charge flows through a conductor.
Whenever a voltage source such as a battery or power supply is connected to a complete circuit, electrons begin moving, creating an electric current.
Without current, no electrical energy can be transferred and no electronic device can function.
How Current is Produced
Electric current requires three things:
- A voltage source.
- A conducting path.
- A closed circuit.
If any part of the circuit is opened, current immediately stops flowing.
Electron Flow

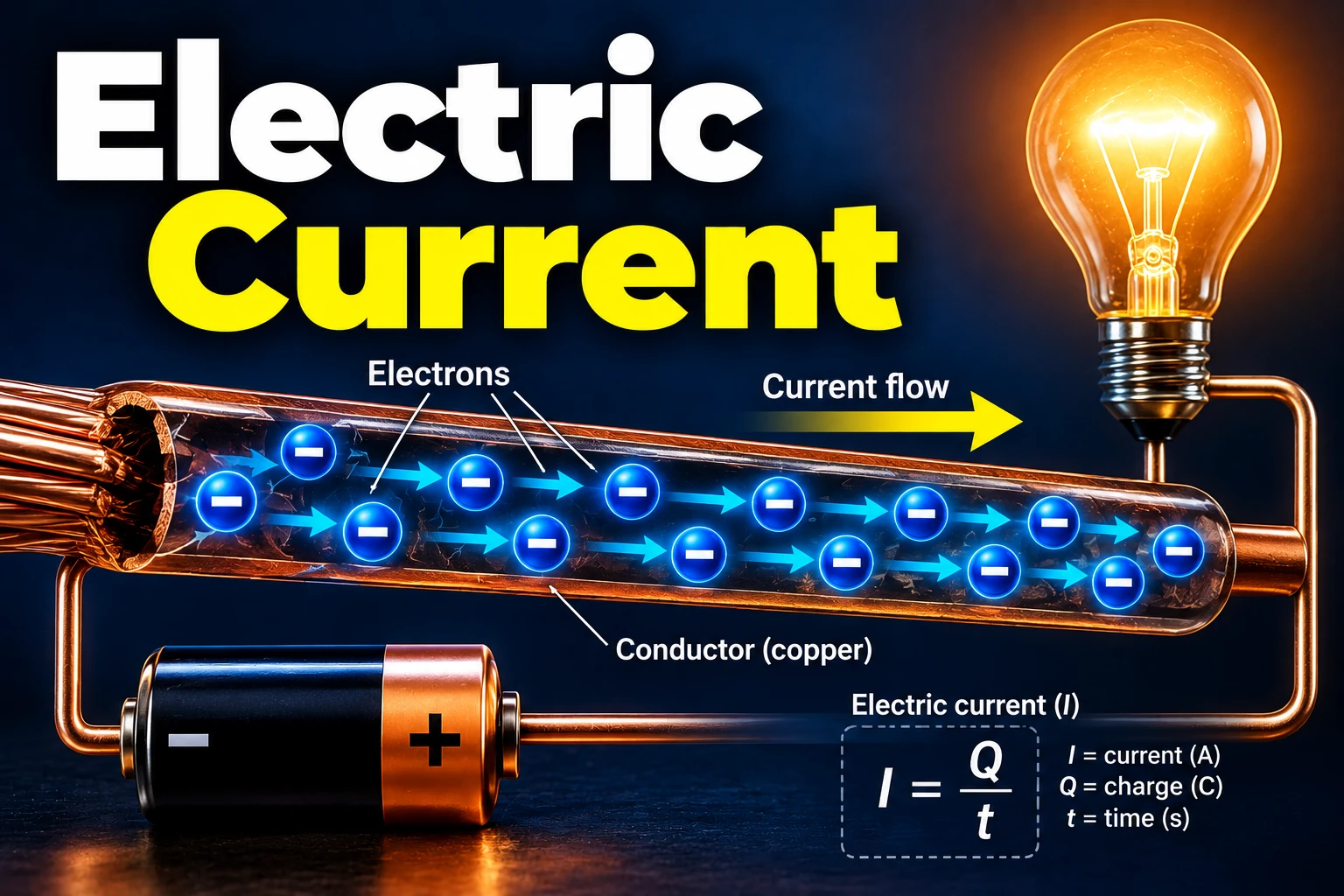

In metallic conductors, current is produced by the movement of free electrons.
Electrons move from the negative terminal towards the positive terminal of the power source.
This movement is called electron flow.
Conventional Current
Before electrons were discovered, engineers assumed electricity flowed from positive to negative.
This assumed direction is called conventional current and is still used in circuit diagrams today.
| Electron Flow | Conventional Current |
|---|---|
| Negative → Positive | Positive → Negative |
Unit of Current
Electric current is measured in amperes (amps).
One ampere means that one coulomb of electric charge passes a point in a conductor every second.
| Unit | Symbol | Value |
|---|---|---|
| Ampere | A | 1 A |
| Milliampere | mA | 0.001 A |
| Microampere | µA | 0.000001 A |
Direct Current (DC)
Direct current flows in only one direction.
Examples include:
- Batteries
- Power banks
- Solar panels
- USB chargers
- Electronic circuits
Alternating Current (AC)
Alternating current continuously changes direction.
Examples include:
- Household mains electricity
- Generators
- Industrial power systems
Most countries use either 50 Hz or 60 Hz AC power.
Current in Everyday Devices
| Device | Typical Current |
|---|---|
| LED Indicator | 10–20 mA |
| USB Charger | 1–3 A |
| Laptop | 2–5 A |
| Desktop Computer | 2–8 A |
| Audio Power Amplifier | Several amperes depending on output power |
| Starter Motor | 100–300 A |
Measuring Current
Current is measured using an ammeter or a digital multimeter.
Unlike a voltmeter, an ammeter must always be connected in series with the circuit so that all the current flows through the meter.
Current and Safety
Large currents can generate significant heat.
To protect equipment and people, electrical systems use:
- Fuses
- Circuit breakers
- Residual Current Devices (RCDs)
- Current-limiting resistors
Applications in Electronics
Electronic circuits carefully control current using components such as:
- Resistors
- Transistors
- Integrated Circuits
- Current regulators
- LED drivers
Controlling current correctly ensures reliable operation and prevents component damage.
Key Points
- Electric current is the flow of electric charge.
- Current is measured in amperes (A).
- Electron flow is from negative to positive.
- Conventional current is from positive to negative.
- Current requires a voltage source and a closed circuit.
- An ammeter is connected in series.
- Current can be either DC or AC.
