Electron Flow
Electric current in most conductors is produced by the movement of electrons. Understanding how electrons move helps explain how batteries, power supplies and electronic circuits work.
What are Electrons?
Electrons are tiny negatively charged particles found in every atom.
In conductive materials such as copper, aluminium and silver, some electrons are only loosely attached to their atoms and can move freely through the material.
These are called free electrons.
How Electron Flow Begins
When a battery is connected to a closed electrical circuit, it creates a difference in electrical potential (voltage).
The battery pushes free electrons away from its negative terminal and attracts them toward its positive terminal.
This continuous movement of electrons is called electron flow.
Direction of Electron Flow
Electrons always move from:
Negative (−) → Positive (+)
This is the actual physical movement of electrons inside metallic conductors.

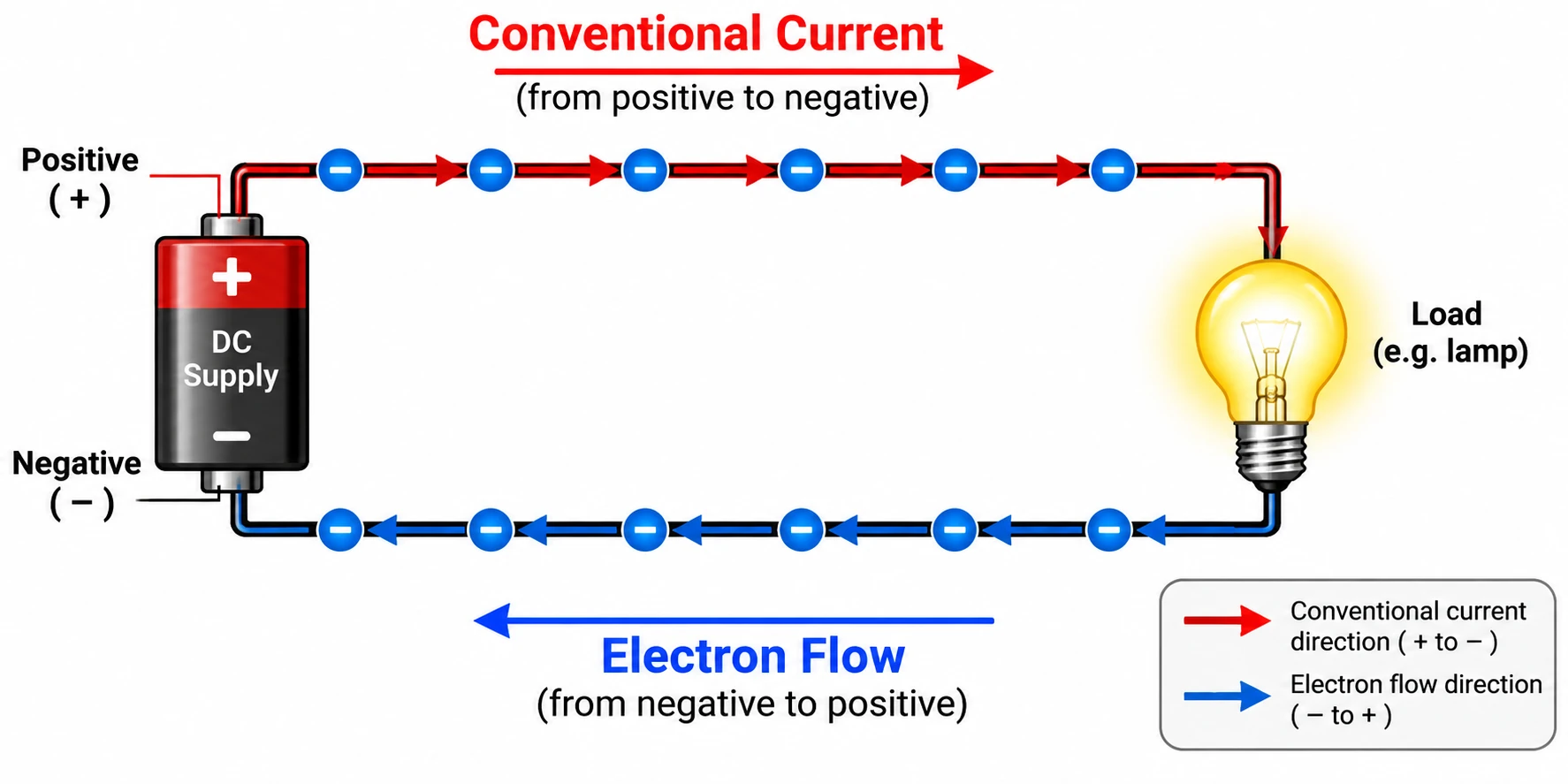

Conventional Current vs Electron Flow
Before electrons were discovered, scientists assumed electricity flowed from the positive terminal to the negative terminal.
This assumed direction became known as conventional current.
| Electron Flow | Conventional Current |
|---|---|
| Negative → Positive | Positive → Negative |
| Actual movement of electrons | Historical convention |
| Used mainly in physics | Used in circuit diagrams and electronics |
Although the directions are opposite, both describe the same electrical phenomenon.
Do Electrons Travel at the Speed of Light?
No. Individual electrons move quite slowly through a conductor. This slow movement is called the electron drift velocity.
However, the electrical signal itself travels through the conductor at a very high speed, close to the speed of light.
This is why a lamp lights almost instantly when a switch is turned on, even though the electrons themselves move much more slowly.
Why Copper is Used for Wires
Copper is widely used because it contains a large number of free electrons.
Copper also has:
- Very low electrical resistance
- Excellent conductivity
- High mechanical strength
- Good resistance to corrosion
- Reasonable cost
Electron Flow in Electronic Components
Different electronic components control electron flow in different ways.
| Component | Effect on Electron Flow |
|---|---|
| Resistor | Limits electron flow |
| Switch | Starts or stops electron flow |
| Diode | Allows electron flow in one direction |
| Transistor | Controls electron flow electronically |
| Capacitor | Stores electric charge temporarily |
A Simple Example
Imagine a battery connected to an LED through a resistor.
When the switch is closed:
- The battery creates a voltage.
- Electrons leave the negative terminal.
- They pass through the resistor.
- They continue through the LED.
- They return to the positive terminal.
- The LED lights because current is flowing.
Key Points
- Electrons carry negative electric charge.
- Free electrons move through conductors.
- Electron flow is from negative to positive.
- Conventional current is from positive to negative.
- Circuit diagrams normally use conventional current.
- Electronic components control the movement of electrons.
